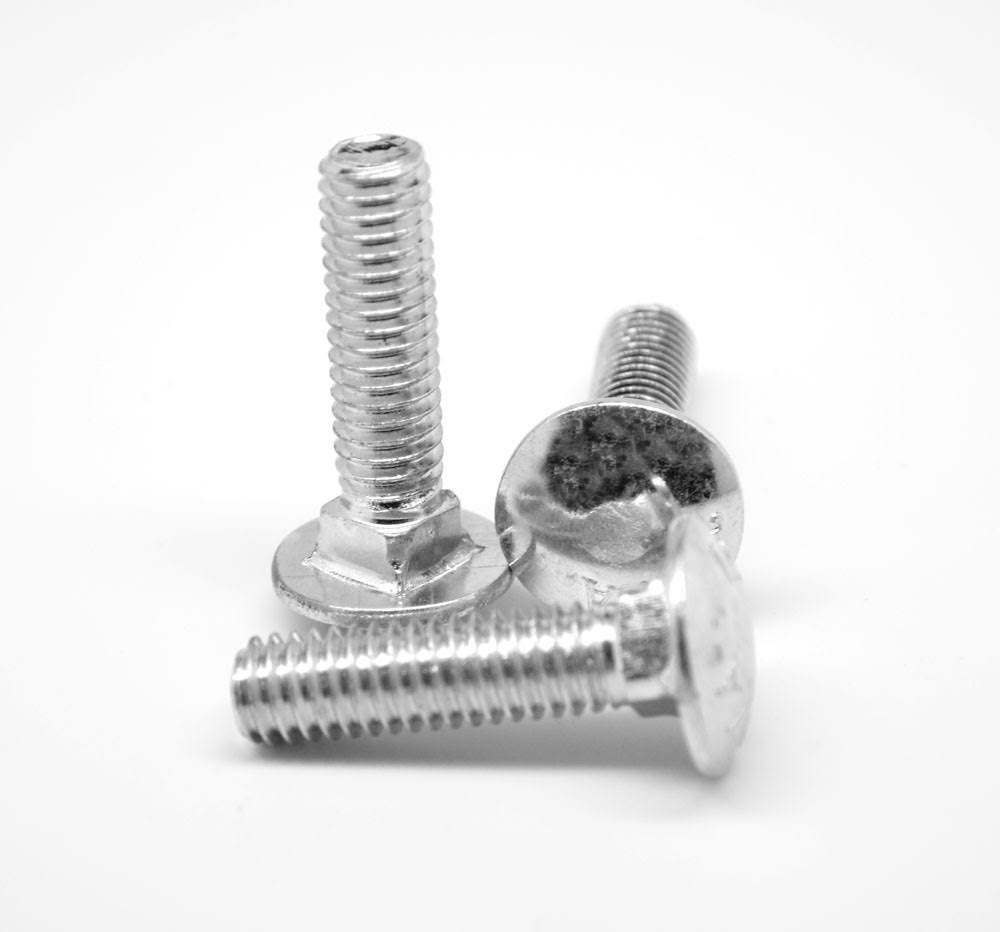

5/8x22-11 x 6 1/2x226x22THD Coarse Thread A307 Grade A Carriage Bolt Low Carbon Steel Zinc Plated R822437
Sale price
$22.95
Regular price $95.72
Skip to product information
Part #: 0000-128095. Buy as few as 75 pcs. Discounts on larger quantities. PRODUCT SPECIFICATIONS Part #: 0000-128095 Fastener Type: Carriage Bolt Size Description: 5/8"-11 x 6 1/2"6"THD UNDER-SIZED Diameter/Nominal Size: 5/8" Length: 6 1/2" Head Diameter: 1.219-1.344" Head Height: 0.313-0.344" Neck Across Square/Diameter: 0.616-0.642" Neck Height: 0.313-0.344" Thread Pitch: 11 Thread Pitch Type: Coarse Thread Direction: Right Thread Coverage: 6" THD System of Measurement: Inch Grade: A (2) Material: Low Carbon Steel Finish: Zinc Plated Standards Met: A307 Average Piece Weight: 0.5401300 lbs. Carriage bolts are Ideal for use in square holes in wood-to-wood and wood-to-metal fastening; bolt has a square neck that prevents it from turning once screwed in. When trying to determine the length of the item, measure from just under the head of the bolt.
5/8x22-11 x 6 1/2x226x22THD Coarse Thread A307 Grade A Carriage Bolt Low Carbon Steel Zinc Plated R822437
Sale price
$22.95
Regular price $95.72
Shipping calculated at checkout.
