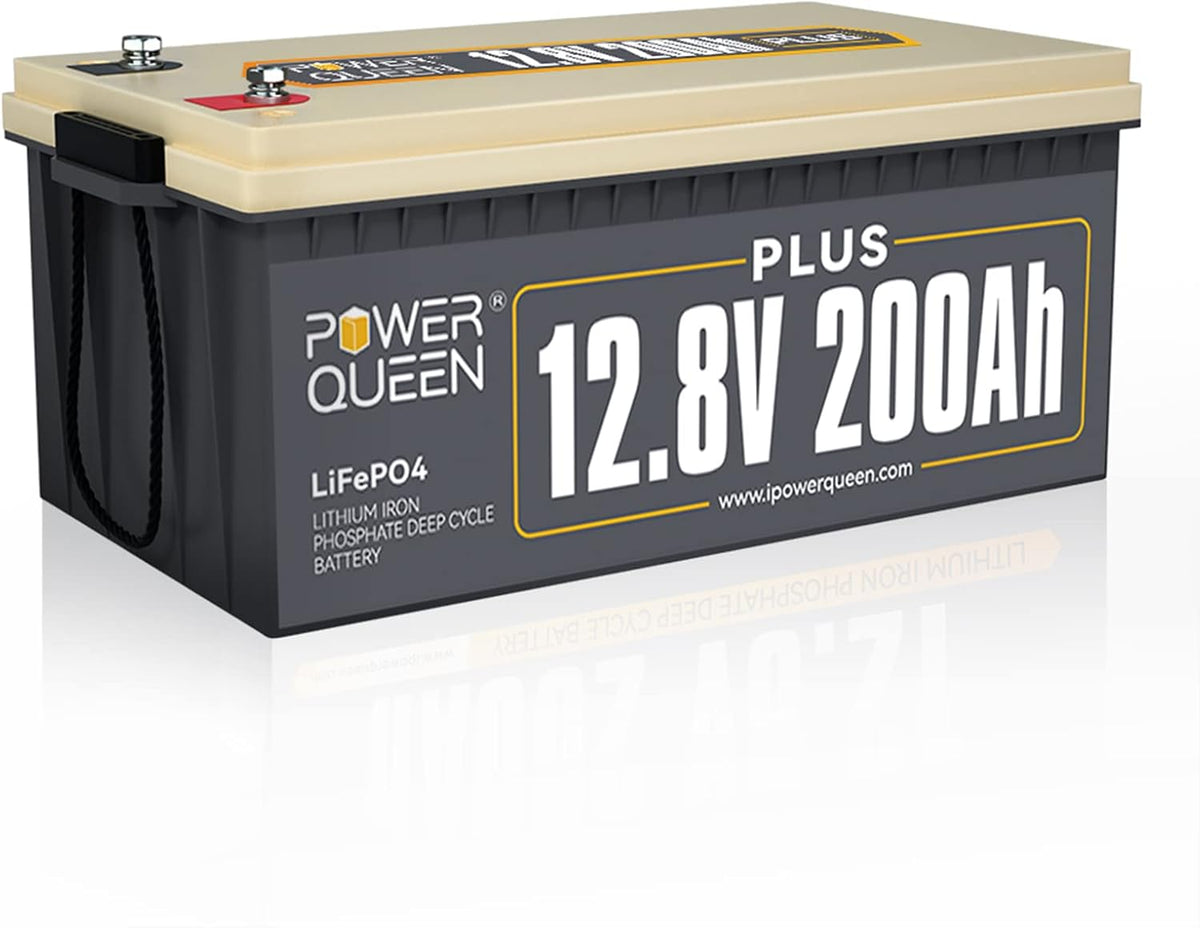

12V 200Ah LiFePO4 Deep Cycle Lithium Battery with 200A BMS B17544
12V 200Ah LiFePO4 Deep Cycle Lithium Battery with 200A BMS B17544
【200A BMS with 2560W Max. Load Power】Power Queen 200Ah Plus LiFePO4 battery has built-in 200A BMS (Battery Management System) to protect it from overcharge, over-discharge, over-current, and short circuit. Our battery has 8 cells inside, the auto motive grade cells are high-density and stable, it’s safe when used in our daily life and friendly for the environment. The 200A BMS could allow us to connect more applications, which supports max. 2560W load power, makes our life more convenient.
【1/3 Lighter Weight & Storage 100% Energy】Our 12.8V 200Ah Plus LiFePO4 battery is 49.6 lbs, lighter weighs than the same capacity of the lead-acid battery which is 130 lb. Even in 1/3 weight, our lithium battery still has the powerful capacity. For example, the energy density of Power Queen 12V 200Ah Plus is 51.61Wh/lb (2560Wh/49.6lb=51.61Wh/lb), while comparable with lead-acid battery is 19.69Wh/lb (2560Wh/130lb=19.69Wh/lb), our lithium battery provides a longer operation time.
【Max. 40.96kWh Energy Storage Solutions】Power Queen 12.8V 200Ah Plus batteries support up to 4 in series and 4 in parallel (Max 4S4P) to get more capacity (200Ah, 400Ah, 600Ah, Max.800Ah) and higher voltage (12.8V, 25.6V, 38.4V, Max.51.2V). Max connected in 16 batteries to get a 51.2V 800Ah battery system, with 40.96kWh energy. This powerful storage solution could be widely used for the home solar system, emergency backup power system, and RV trip.
【Eco-Friendly Energy & Save 1/2 Power Fees】Power Queen 12.8V 200Ah PLUS LiFePO4 battery provides 4000+ cycles times and 2560Wh energy, which means our 200Ah battery produces 10240kWh (2560Wh*4000 cycles times=10240kWh) in its 10-year lifespan, which means you will save 1/2 of power fees compare with using the utility power. Our LiFePO4 batteries are widely used for solar system, RV trip and outdoors activities, you could enjoy self-reliant colorful life when using the battery in solar source.
【5-Year Warranty & 24 Hours Timely Service】Power Queen provides 5-year warranty for 12.8V 200Ah PLUS LiFePO4 battery. We're struggle to provide the safest batteries and the most professional service to every customer. If you have any questions, please feel free to contact us. And we provide safe and strong battery package and fast delivery because the battery will be shipped from our local California warehouse. Normally, the shipping time would be 2~7 workdays due to difference zones of the US.
Why choose our 12v 200Ah PLUS LiFePo4 battery?
Power Queen's LiFePo4 battery is internationally certified, with A-grade cells and large capacity.

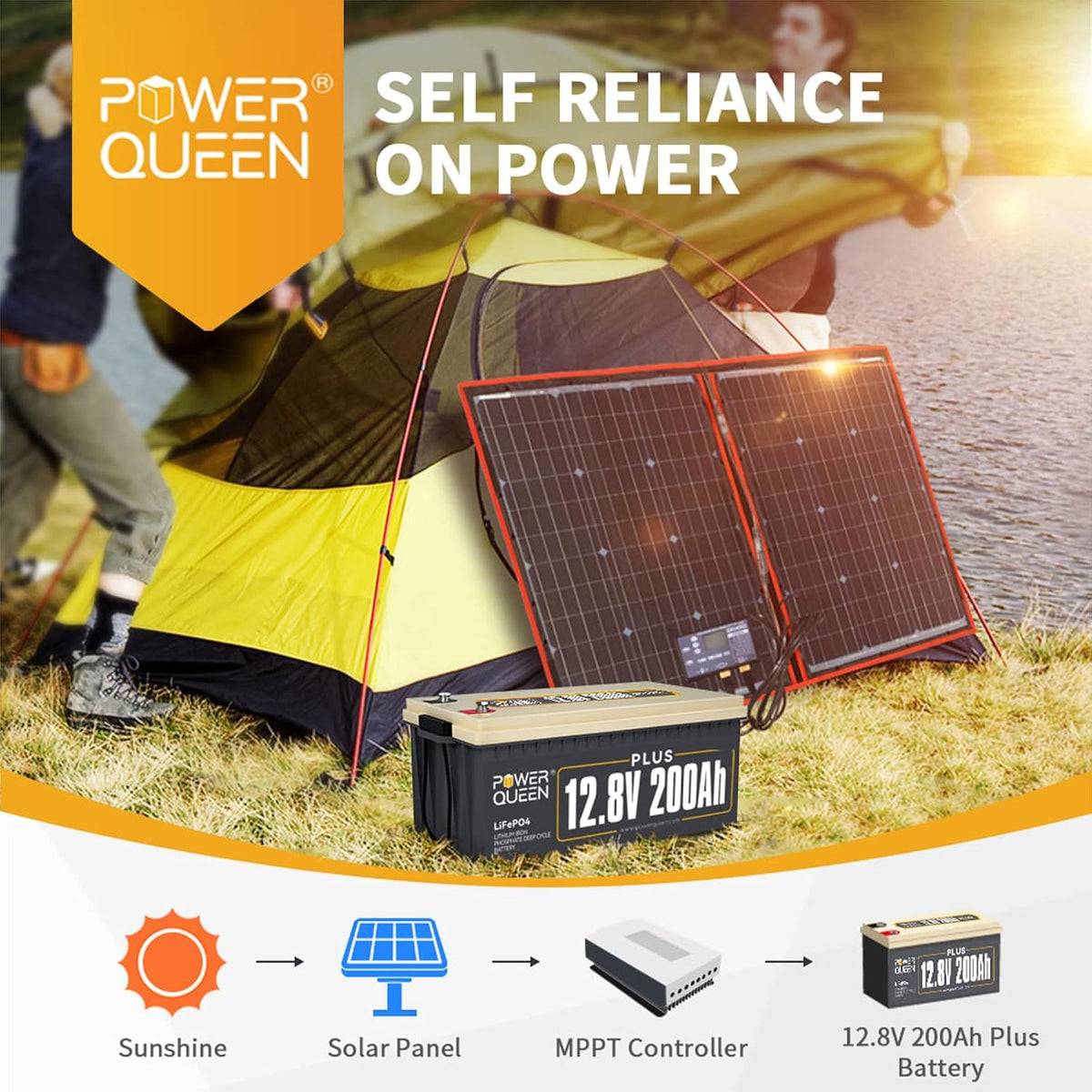

It is your best partner in many application scenarios such as camping; RV; solar system and etc.
Design of internal structure

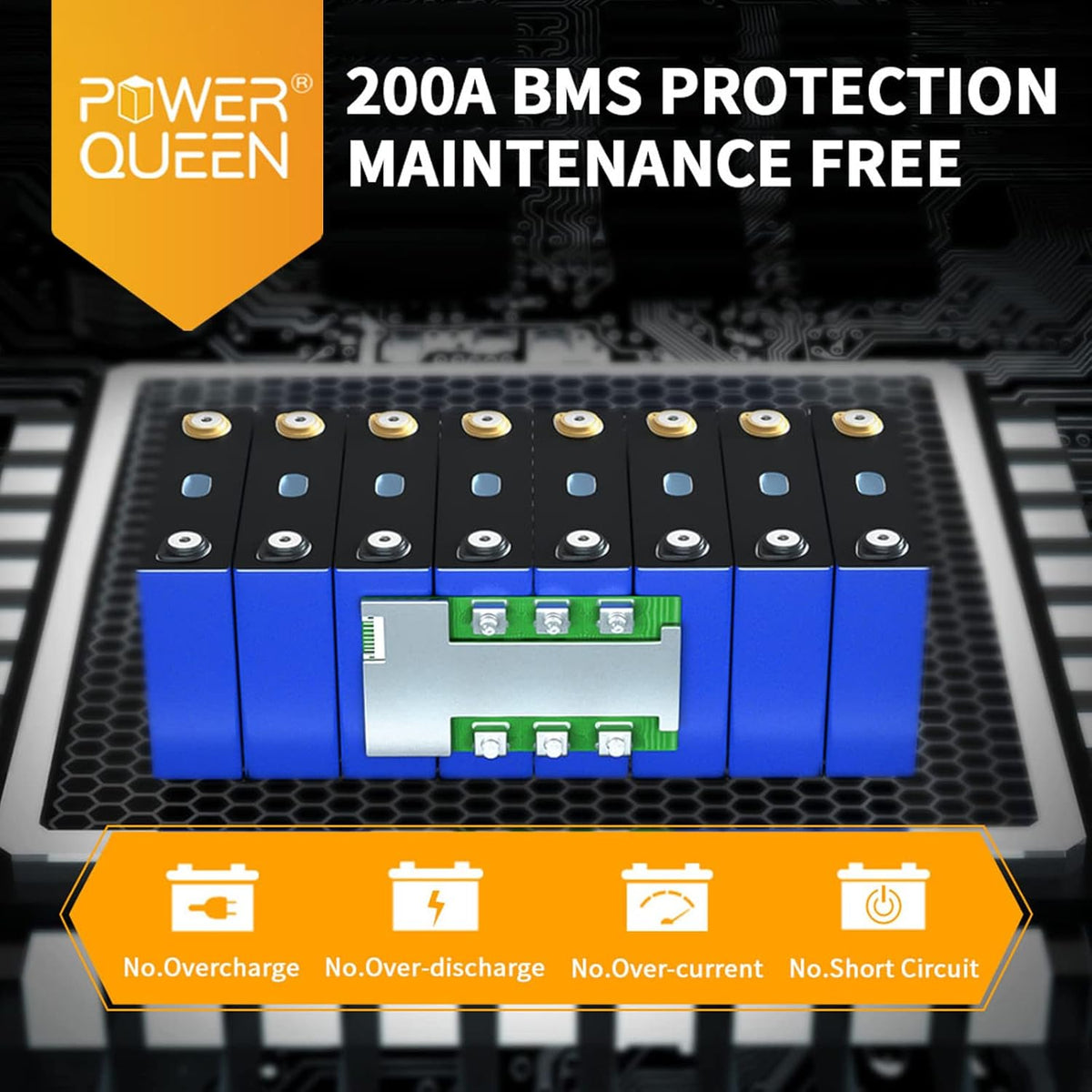

The BMS (Battery Management System) will protect the battery from overcharge, overdischarge, overcurrent and short circuit.
Stable crystal lattice ensures longer battery life.
Lithium battery vs lead-acid battery
(1)Lighter weight.
(2)Support for higher current chargers.
(3)Super capacity: 100% 2.56kWh Energy, Fully charging & Discharging

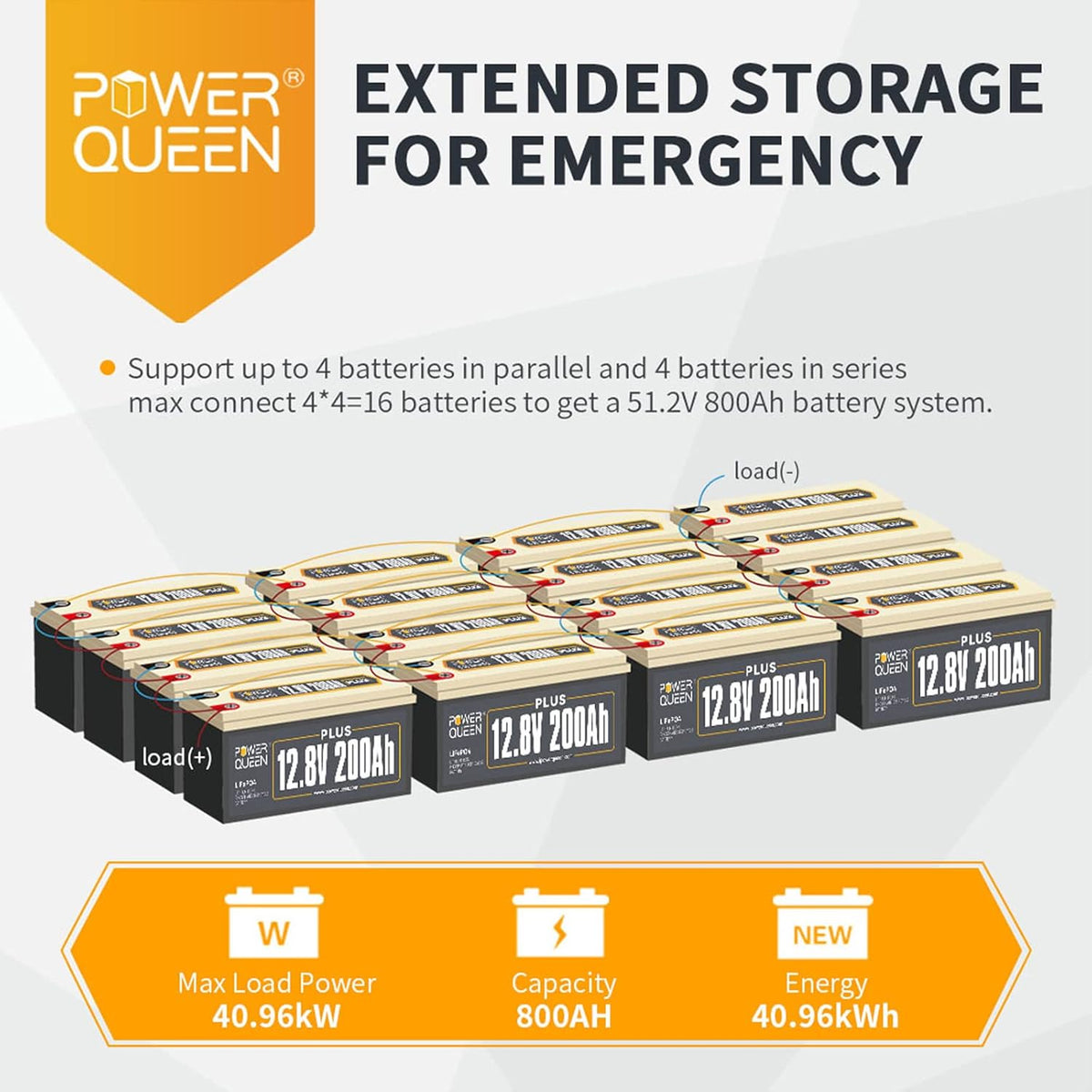

(4)The 200Ah Plus LiFePo4 battery support up to 4 in parallel and 4 in series to connect 16 batteries to build a 51.2v 800Ah battery system.
LiFePO4 battery 200Ah Plus Operation Specifications:
Rated Capacity 200 Ah
Nominal Voltage 12.8 V
Cycle Life 4000 Cycles
Maximum Continuous Charging Current: 200 A
Maximum Continuous Discharging Current: 200 A
Connection Method：Parallel/Series
Storage Temperature: -10~50℃

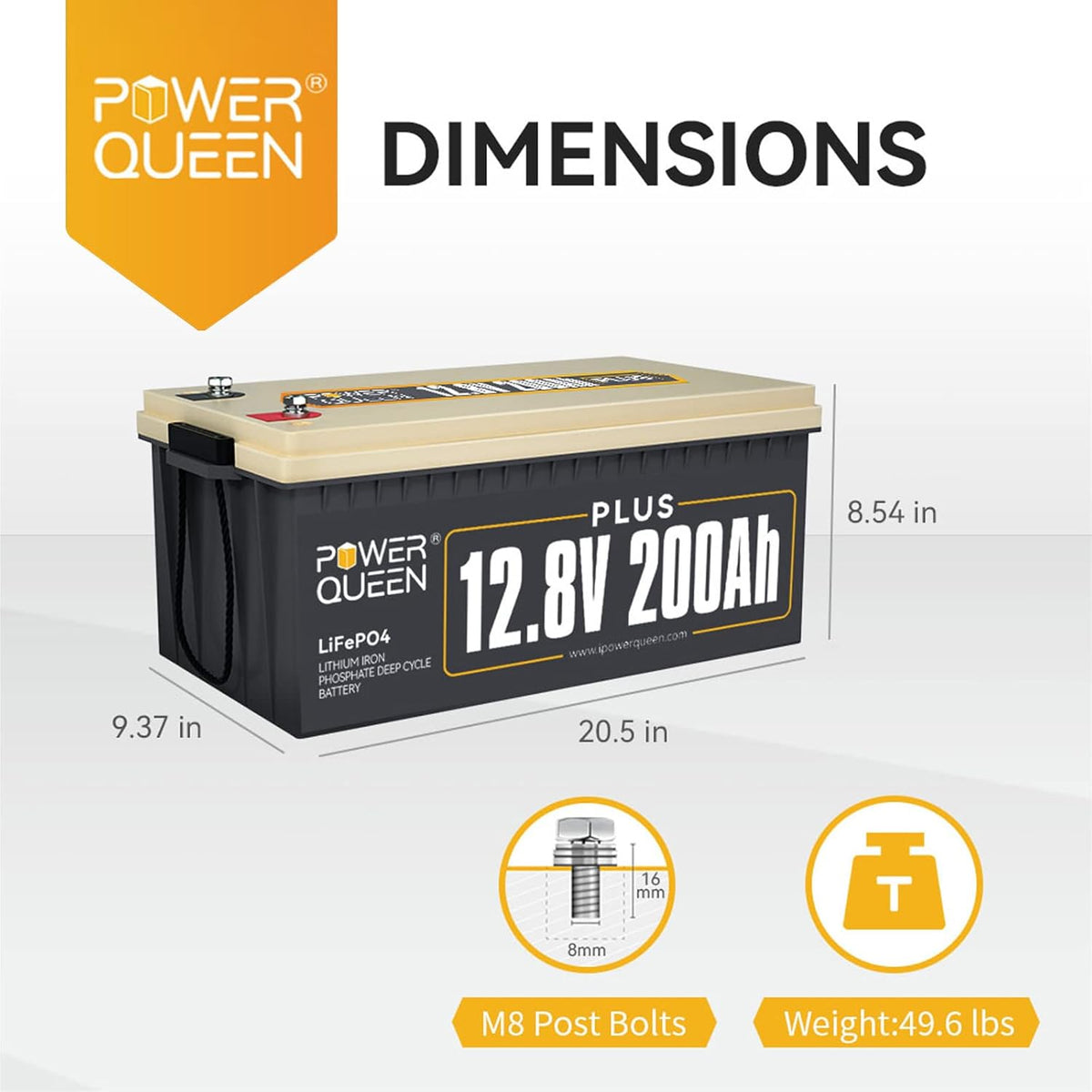

Dimensions: L20.5*W9.37*H8.54 inch
Weight: 49.6 lbs
5-year warranty and 24-hour prompt service
Power Queen offers a 5-year warranty for 12.8V 200Ah PLUS LiFePO4 batteries. When you have a battery inquiry, we will provide one-on-one technical support to answer your questions within 24 hours. Due to regional differences in the US, shipping time is 3~7 working days.
